ADC Diagnostix™ 752M+ Mobile Aneroid Sphyg with Adcuff+

ADC Diagnostix™ 752M+ Mobile Aneroid Sphyg with Adcuff+

The 752M offers our clock-face aneroid with a versatile mobile platform for the ultimate in portability.

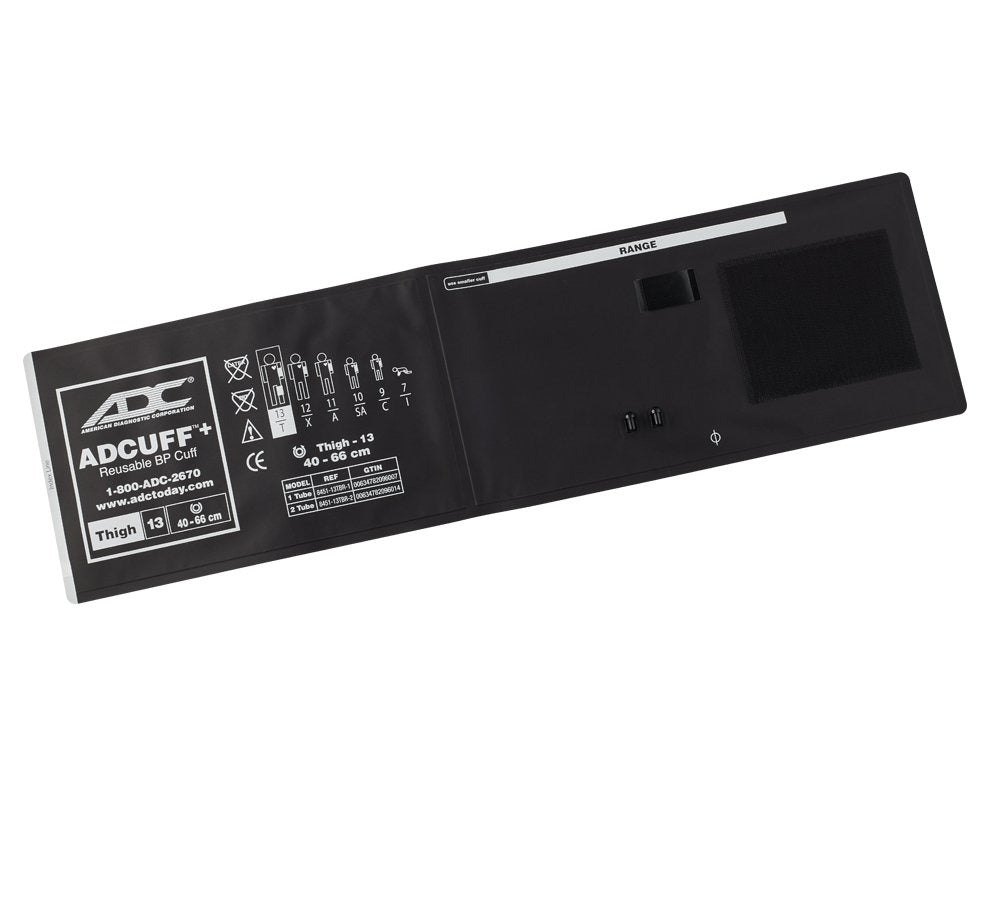

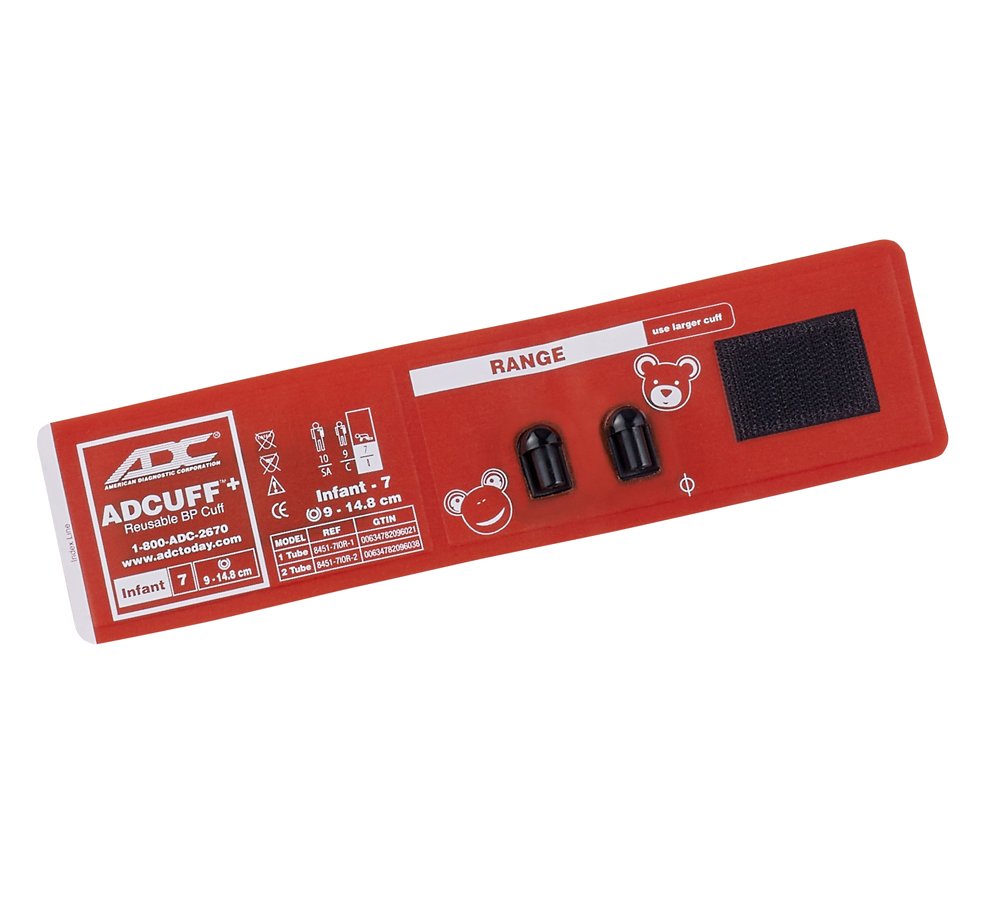

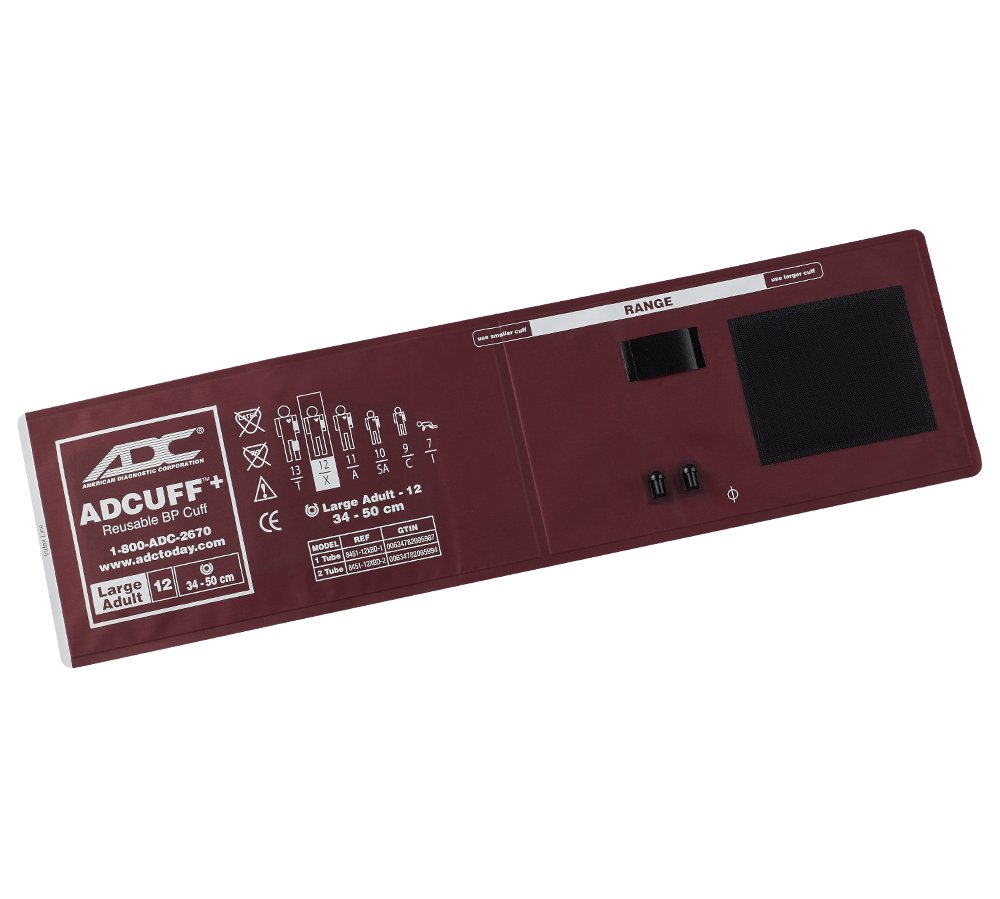

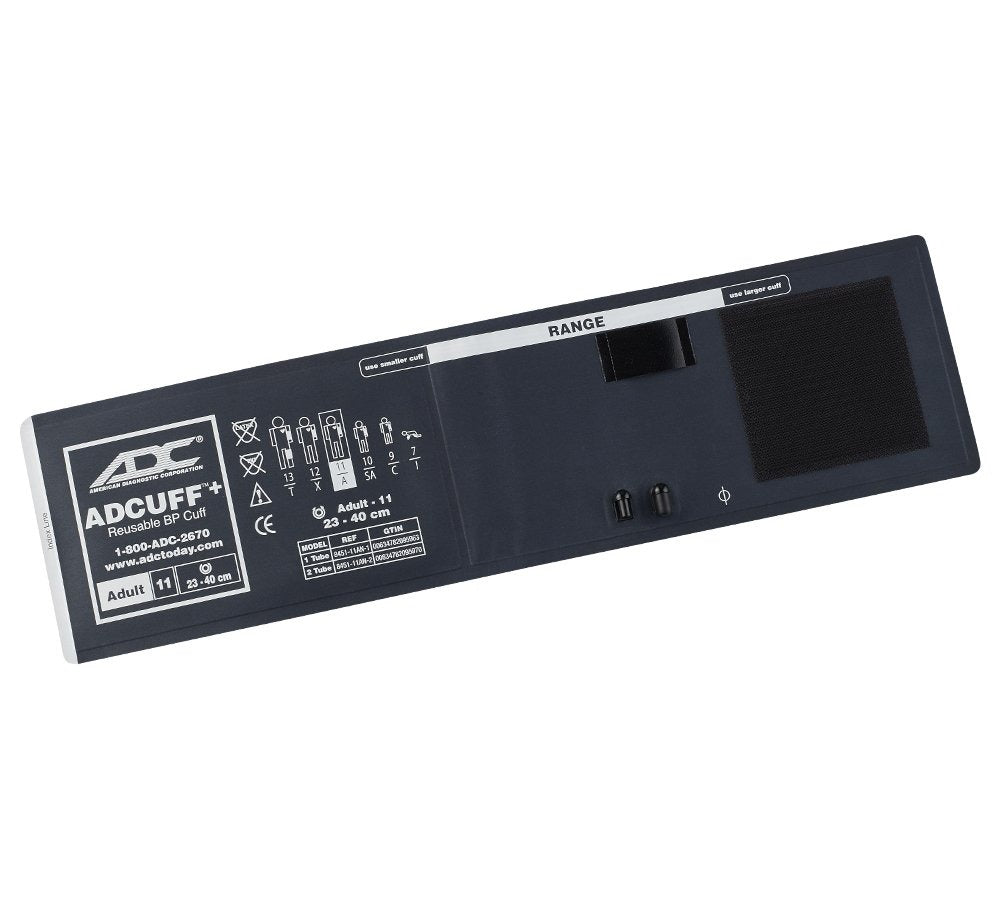

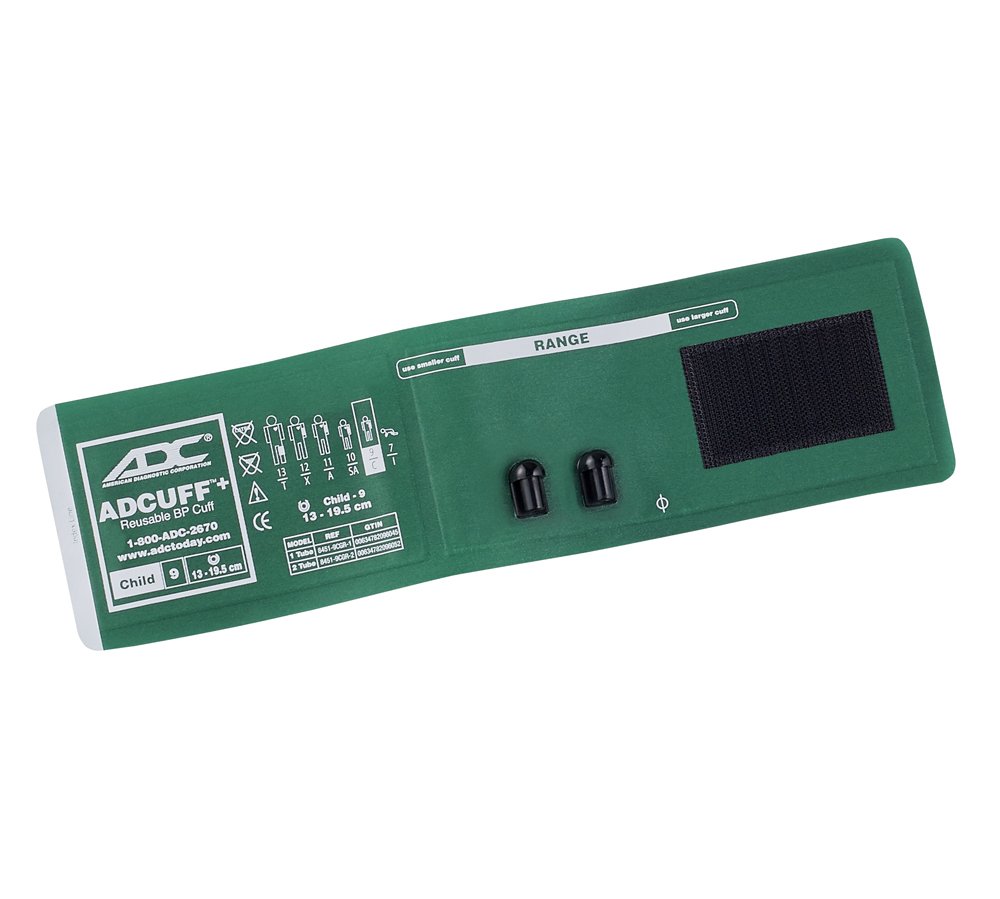

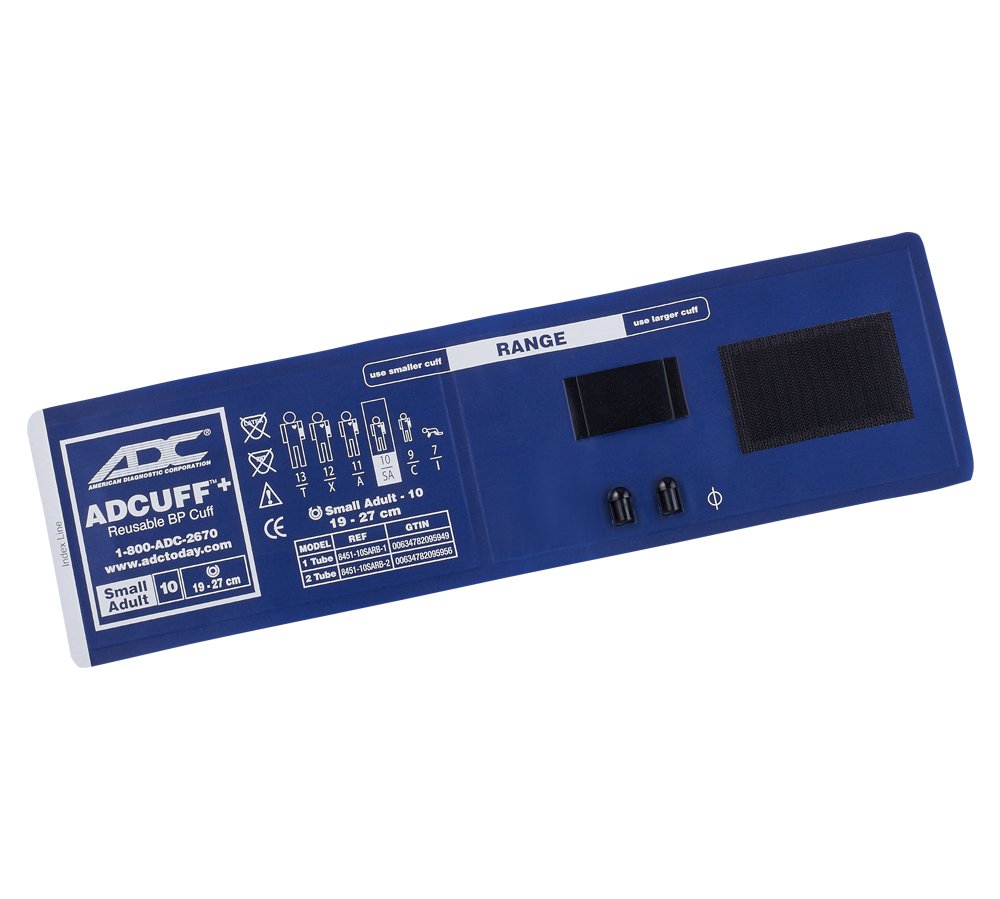

The Adcuff+ model features our all-new, one-piece reusable nylon blood pressure cuffs:

• Bladderless construction from TPU-coated, 70 denier nylon that’s simple to use and easy to clean

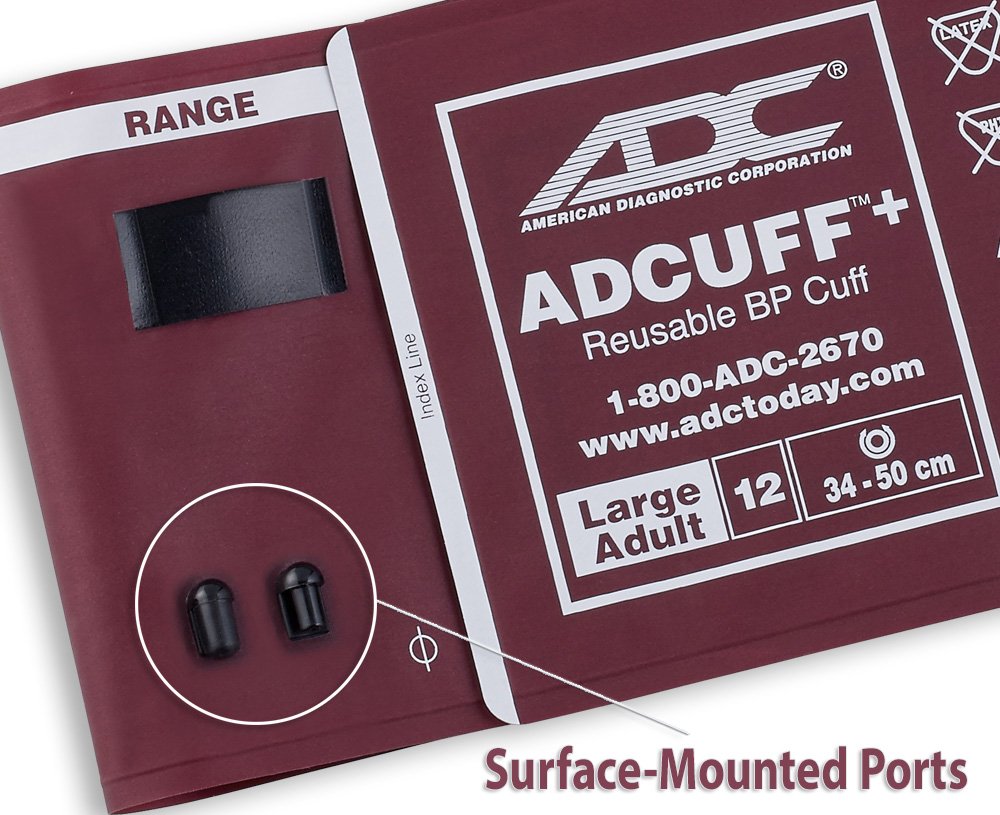

• Surface-mounted tube ports for a more uniform fit around patient limb
• ADC’s proprietary Size Guide marking system, which helps prevent mis-cuffing

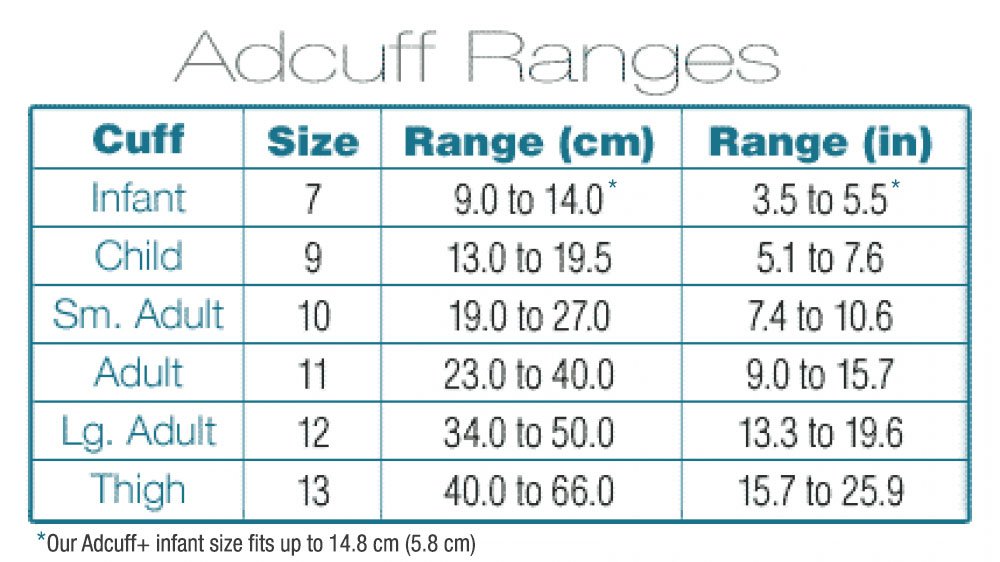

• Longer limb ranges for improved patient coverage
• Hang tab (on most sizes) fits conventional pocket gauges
• Hook-and-loop adhesive rated for tens of thousands of cycles
• Three-year warranty on cuffs

Gauge features:

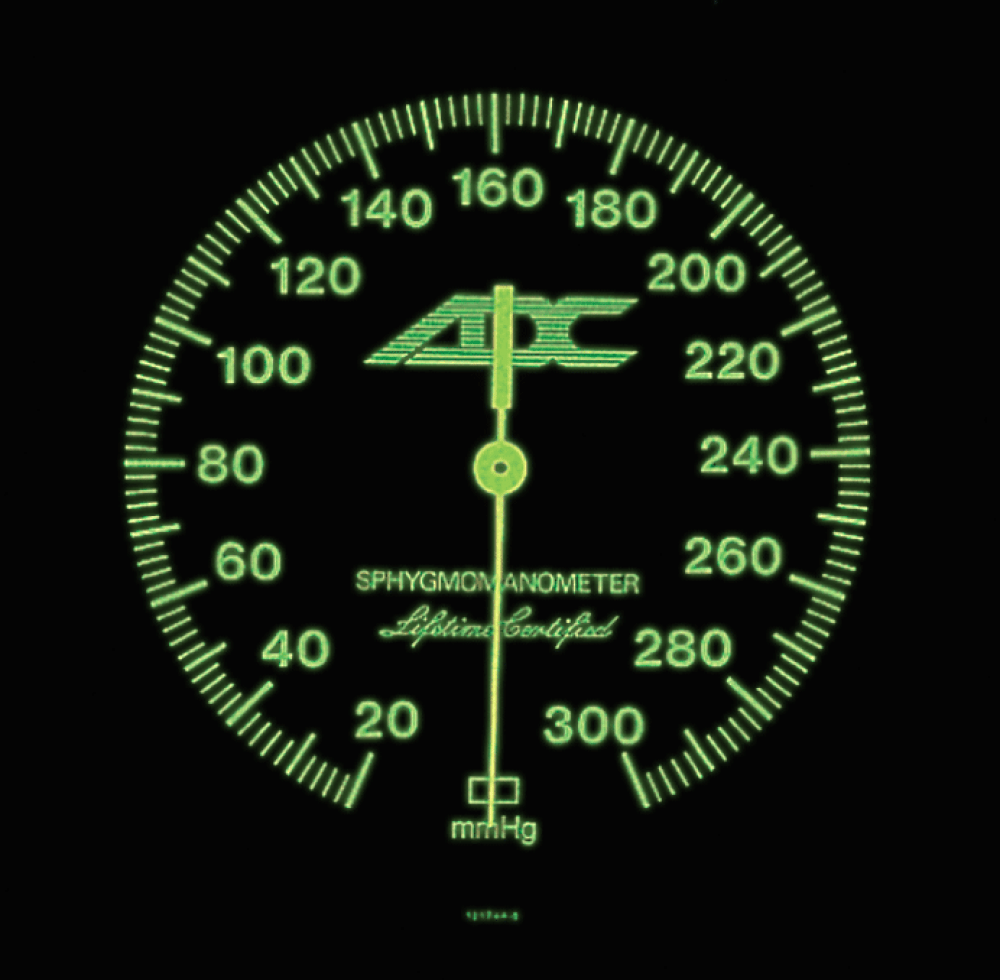

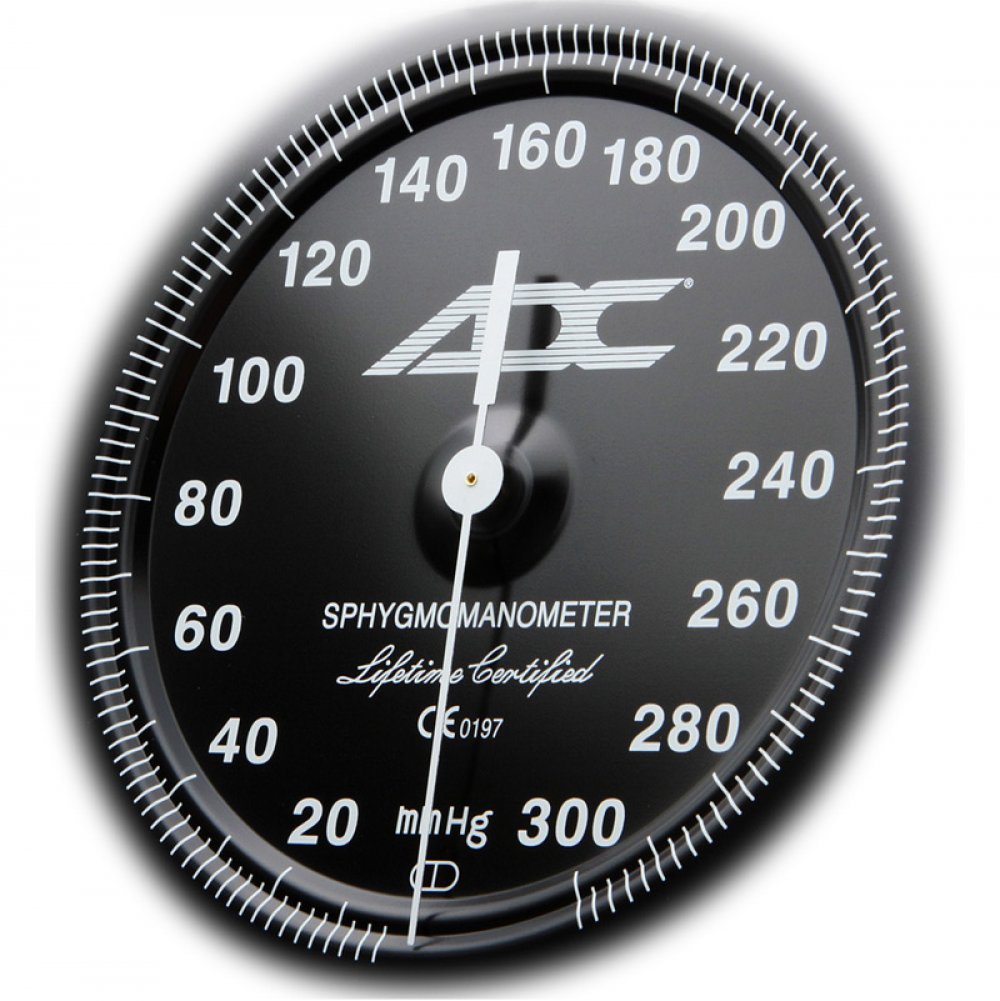

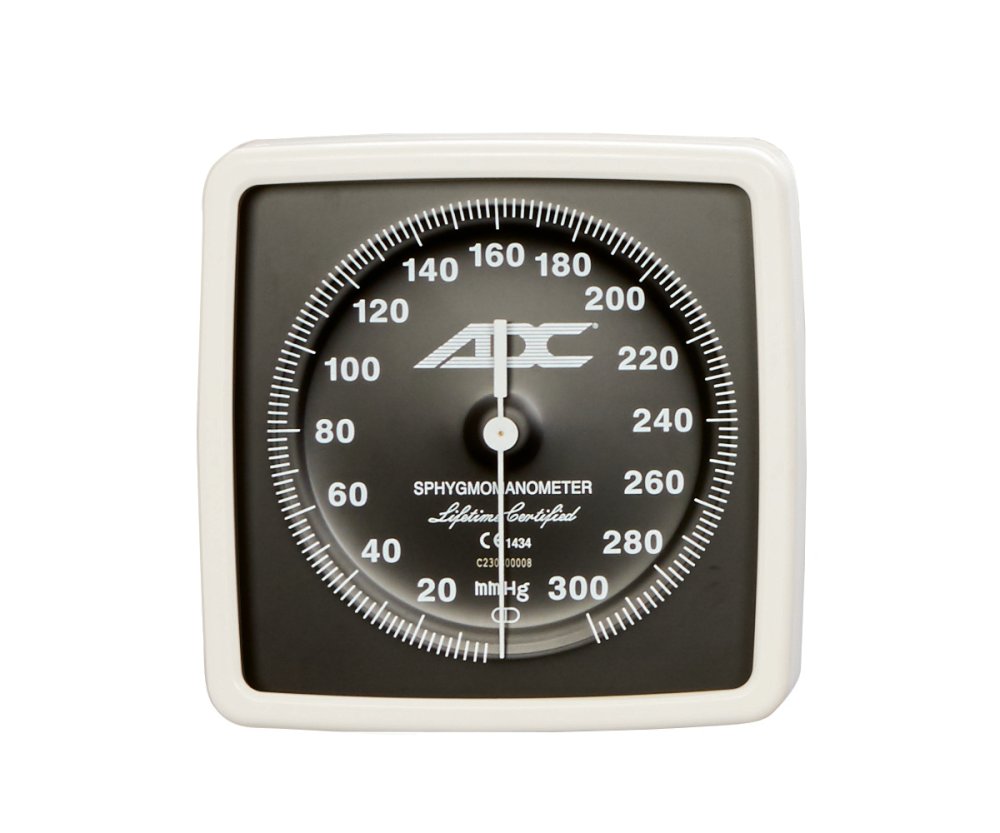

• Clock-style gauge with a large, easy-to-read, 6” luminescent dial for high visibility in virtually any light condition

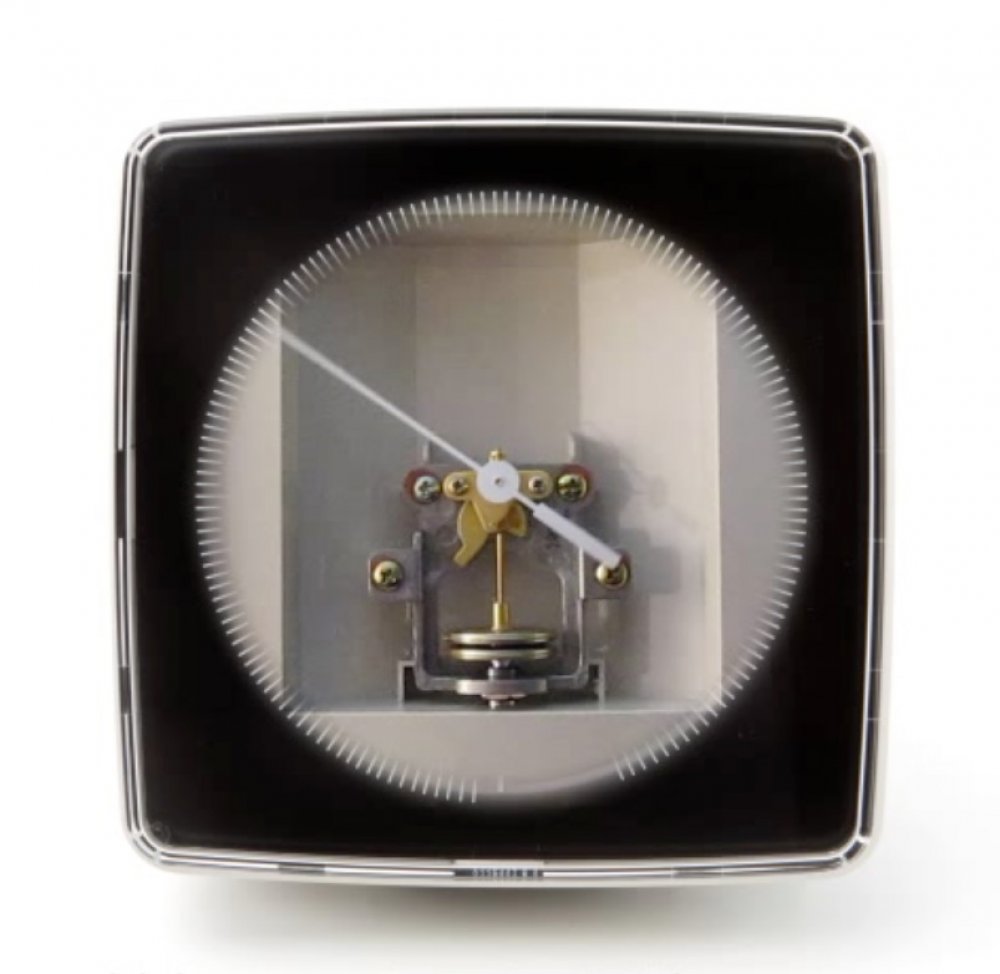

• Precision-crafted, 300mmHg Japanese engineered manometer with no-pin stop movement, withstands the heaviest use
• Winter white wraparound bezel for a finished look
• Manometer angled back 15° for easy viewing

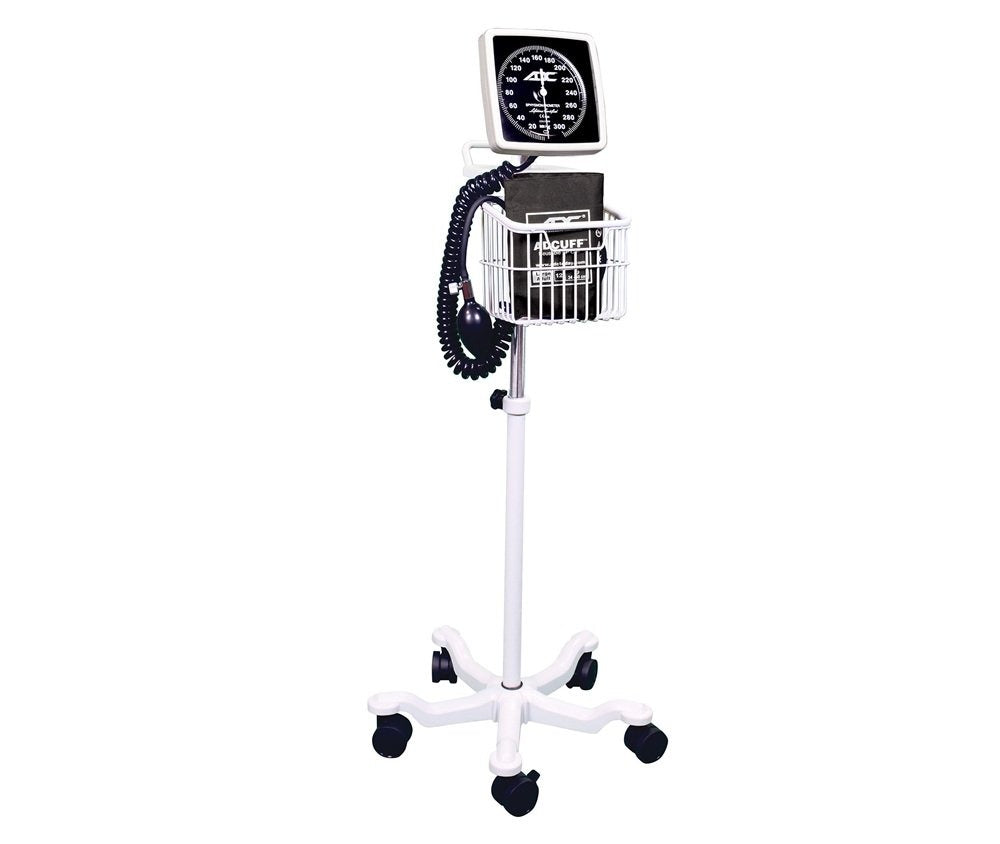

Mobile stand features:

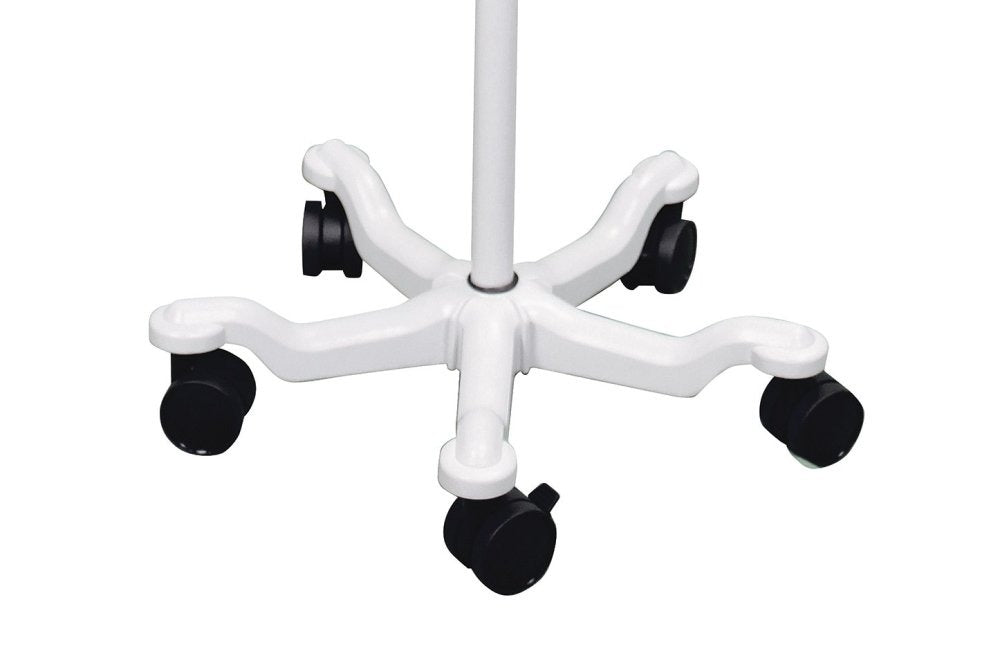

• Height-adjustable Spider-Leg^™ caster stand with range of 34” to 48” (from bottom of base to top of unit)
• Stand base has an 18” diameter with five black casters, two with locking brakes

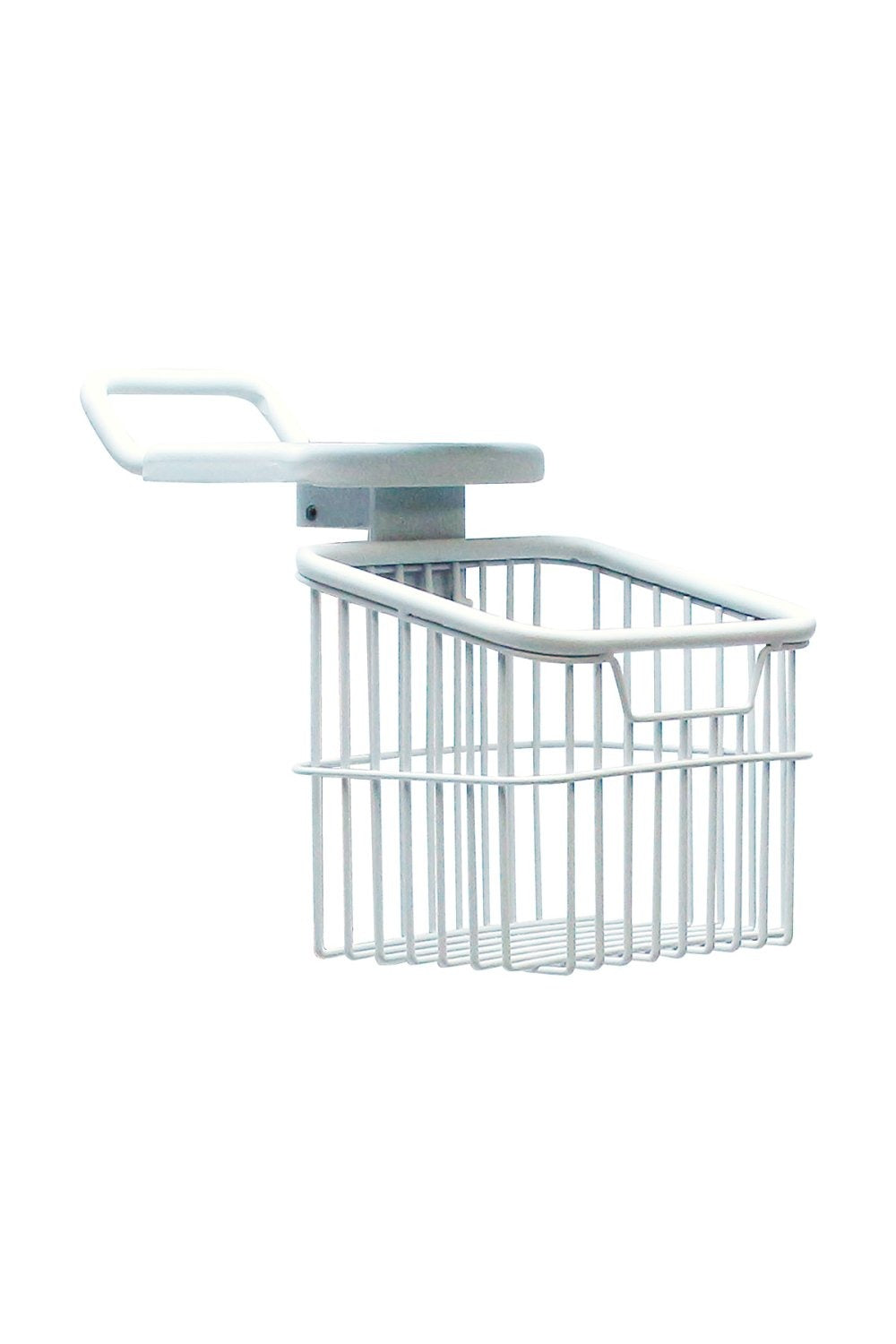

• Complete with basket and all necessary hardware and assembly instructions (some assembly required)

Other features:

• Adcuff inflation system with nylon cuff, Adflow bulb and valve, and eight-foot length (when extended) coiled tubing
• Adflow filter screen check and deflation valve for reduced dust build-up
• Adflow chrome-plated brass air release valve with micro-threads for precise deflation control
• Lifetime calibration warranty

Made without phthalates or natural rubber latex. Assembled, inspected, and packaged in the U.S.A from foreign components. Meets or exceeds ANSI/AAMI/ISO 81060-1.
