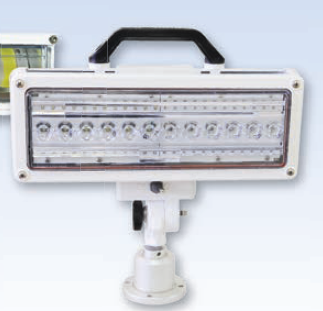

LED Scenelgt, SPECTRA, 240VAC 20k lm, fixed TM, 450deg
The pedestal allows the lamphead to rotate 450 degrees and have a self adjusting friction brake to prevent arbitrary rotation. The pedestal has a round mounting base. Wiring extends from the pedestal bottom.
The lamphead has a unique lens that directs flood lighting onto the work area and focuses the spot light beam into the distance. The lamphead angle of elevation is adjustable at a pivot in the mounting arm and the position is locked with a round knurled locking knob. The lamphead is no more than 5 3/8" high by 14" wide by 3 3/4" deep and has a heat resistant handle. The lamphead and mounting arm are powder coated. The LED scene light is for fire service use.
SPA570-Q15:
- Includes 60 ultra-bright white LEDs
- 48 LEDs for flood lighting
- 12 LEDs to provide a spot light beam pattern
- It operates at 12/24 volts DC, draws 13/6.5 amps, and generates 15,000 lumens of light
- The lamphead is no more than 5 3/8" high by 14" wide by 3 3/4" deep
SPA570-J20:- Includes 60 ultra-bright white LEDs
- 48 LEDs for flood lighting
- 12 LEDs to provide a spot light beam pattern
- It operates at 240 volts AC, draws 1 amp, and generates 20,000 lumens of light
- The lamphead is no more than 5 3/8" high by 14" wide by 3 3/4" deep
SPA570-K20:- Includes 60 ultra-bright white LEDs
- 48 LEDs for flood lighting
- 12 LEDs to provide a spot light beam pattern
- It operates at 120 volts AC, draws 2 amps, and generates 20,000 lumens of light
- The lamphead is no more than 5 3/8" high by 14" wide by 3 3/4" deep
SPA570-Q20:- Includes 84 ultra-bright white LEDs
- 72 LEDs for flood lighting
- 12 LEDs to provide a spot light beam pattern
- It operates at 12/24 volts DC, draws 18/9 amps, and generates 20,000 lumens of light
- The lamphead is no more than 5 3/8" high by 14" wide by 3 3/4" deep
Spectra
20,000 lumens of bright light
Puts All Light Directly on the Work Area & Scene Beyond
Three rows of LEDs - Top and bottom rows are flood LEDs designed to light up the work area. The middle row of focused spot LEDs provide long distance illumination.
SPECTRA’s unique lens design provides a smooth and uniform flood and spot combination bringing firefighters the widest light pattern for improved work area visibility as well as illuminating objects at a farther distance.
SPECTRA’s advanced lens design and arrangement of powerful LEDs deliver bright LED light where its needed.
