ADC Diagnostix™ 543122- 3.5V Portable USB Coax Plus Ophthalmoscope, Black

ADC Diagnostix™ 543122- 3.5V Portable USB Coax Plus Ophthalmoscope, Black

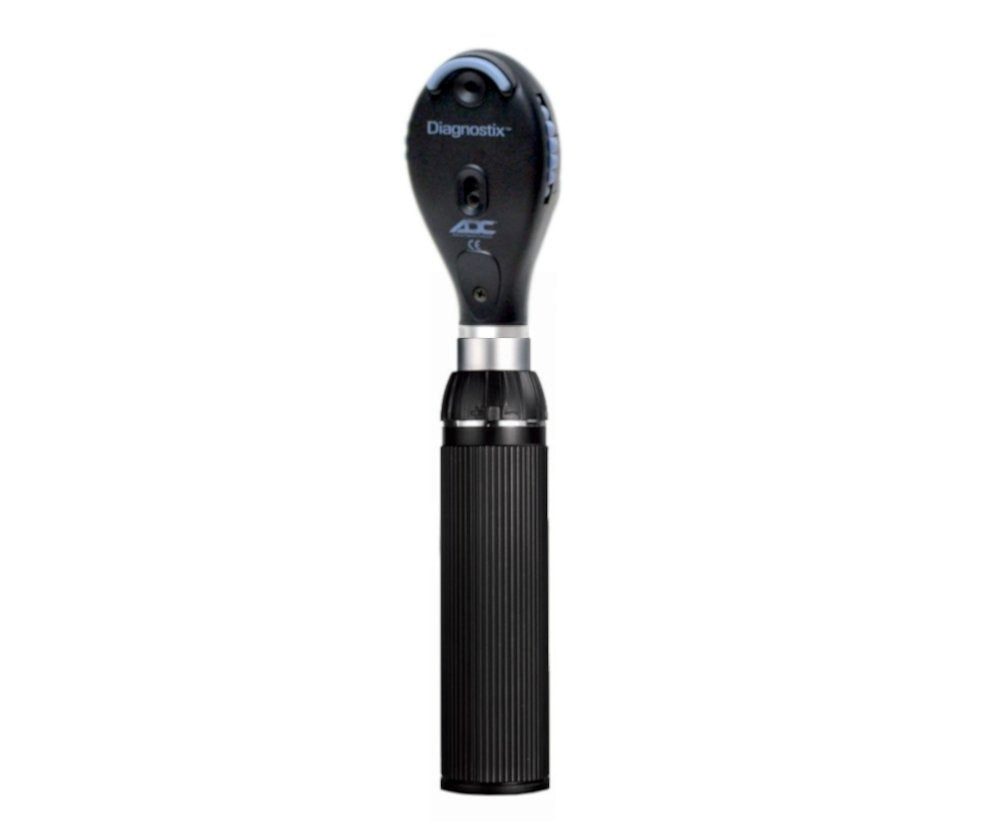

Complete instrument includes our 3.5V Coax Plus Ophthalmoscope head and USB rechargeable Li-ion battery handle in a zippered padded nylon case.

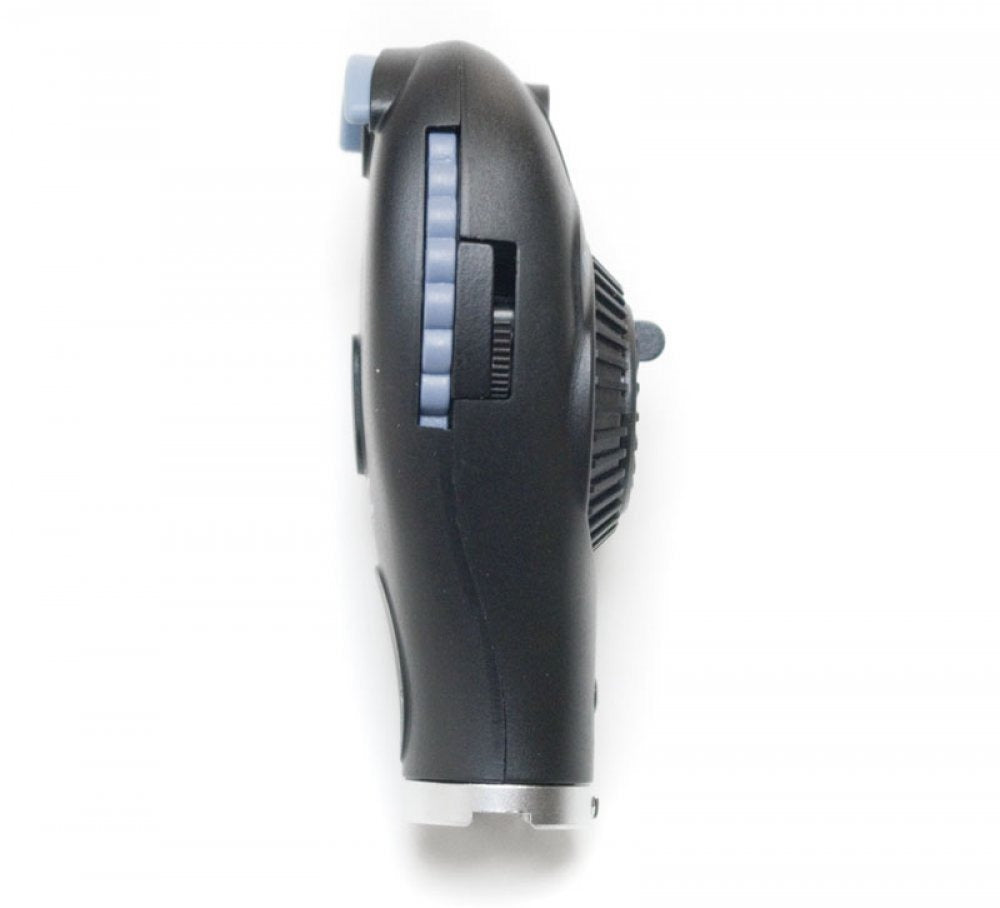

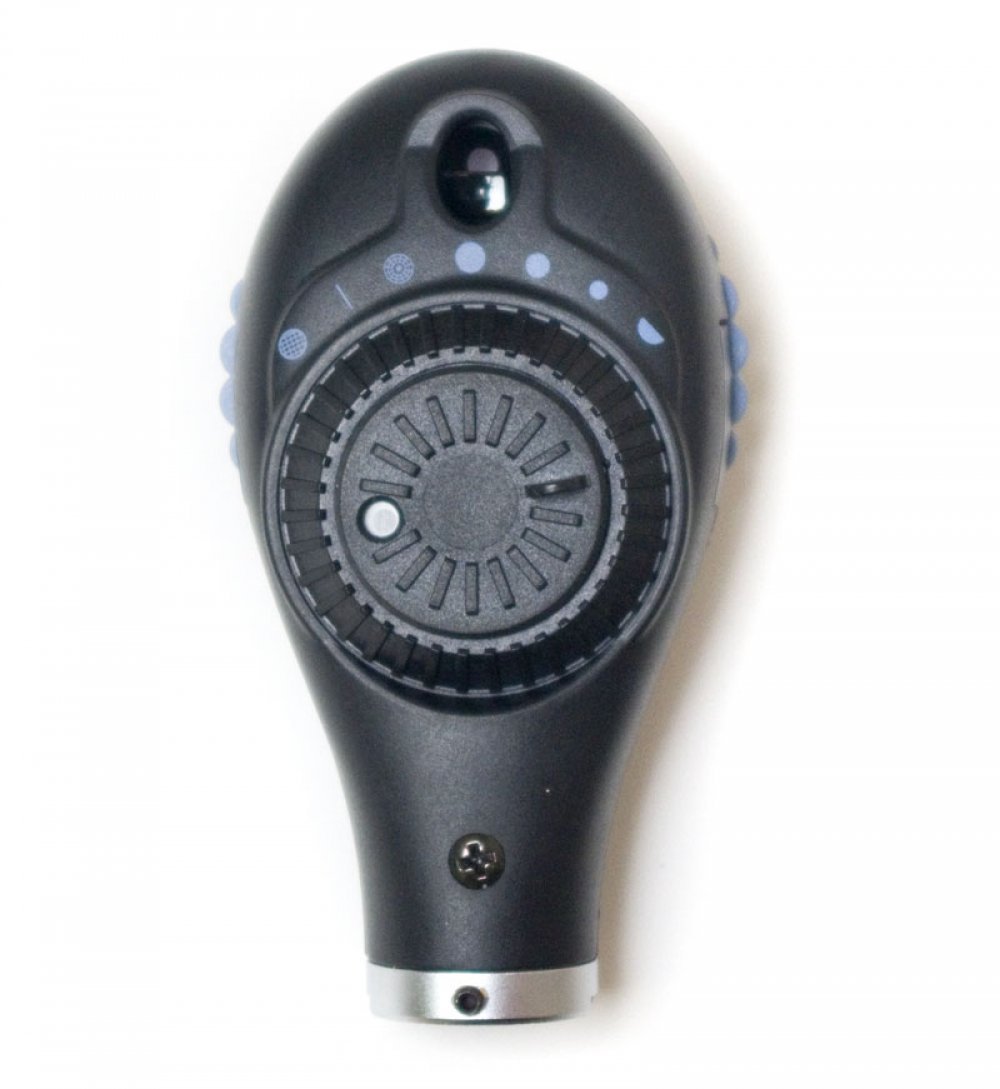

Coax Plus Ophthalmoscope Head features:

• High-performance aspherical condenser lens reduces corneal reflection
• Further reduction provided by utilizing distinct parallel observational and illuminating light beams (Gullstrand’s Equation)
• Ergonomic design and integral thumb rest improves stability and allows one-finger control of all functions
• Synthetic rubber brow rest facilitates use with practitioner eyeglasses
• Dust proof
• Magnified, illuminated aperture viewing window
• Universal bayonet mount for compatibility with other brands of 3.5V power supply handles
• Anti-theft locking feature is standard

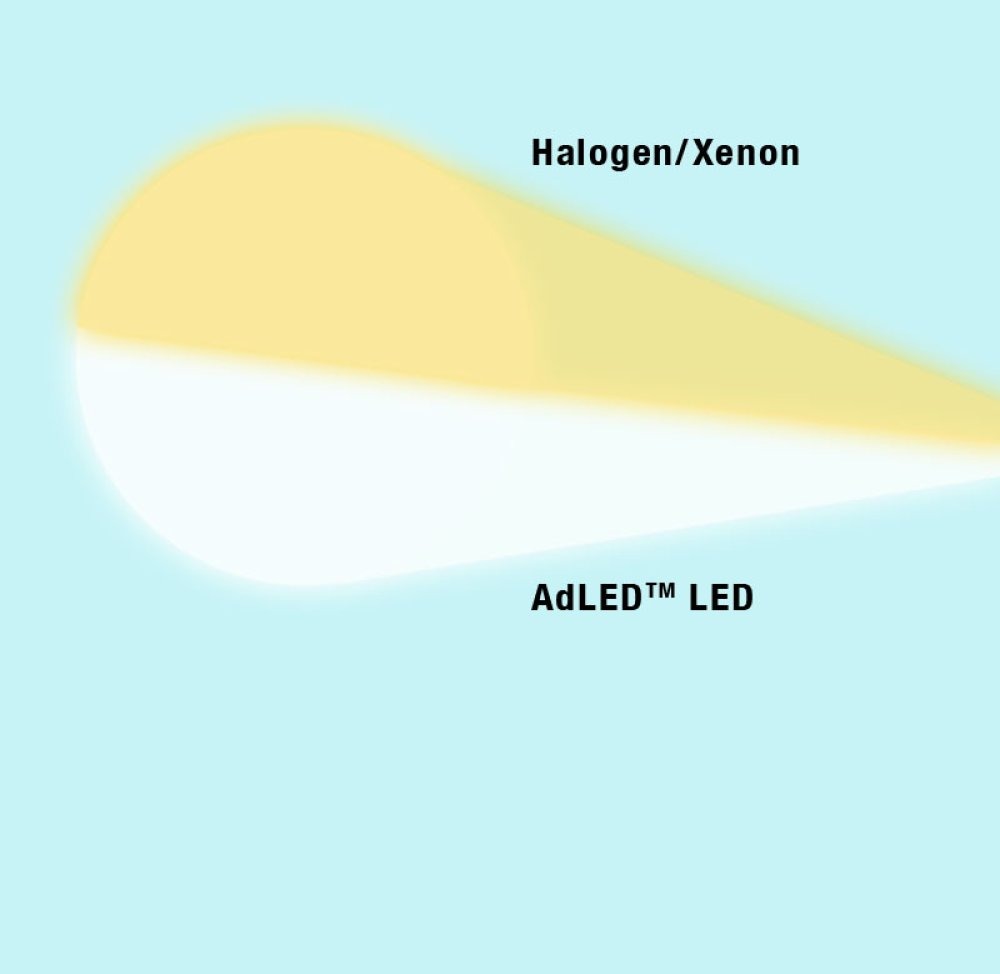

• Choose xenon or high-performance AdLED illumination
• 89 viewing lenses from -44 to +45 in single step
• 28 aperture/filter combinations for improved diagnostic capability
• Secondary focusing wheel with zero retention for quick correction of ametropias, provides virtually unlimited fine focus or fast focus in lieu of the 89 viewing lenses
• The addition of a Karo (grid) aperture that allows for easier transfer of observations to standard Karo (graph) paper

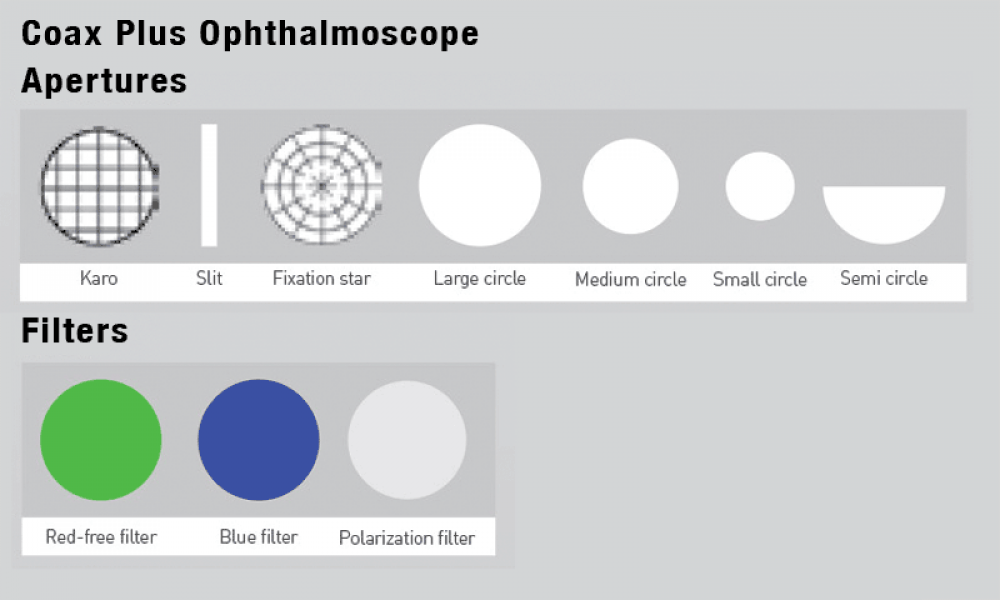

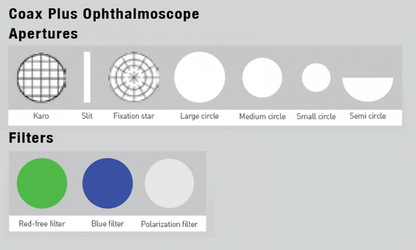

6 apertures include:

• Slit – used to help determine levels of tumors and lesions
• Fixation – has graduated crosshairs for measuring eccentric fixation or locating lesions
• Large – standard aperture for a dilated pupil and general examination of the eye
• Small – provides excellent view of fundus through an undilated pupil
• Micro spot – allows quick entry into small, undilated pupils
• Half moon – provides a combination of depth perception and field of view

3 filters (plus neutral) include:

• Red free – excludes red rays from examination field for easy identification of veins, arteries, and nerve fibers
• Cobalt – used with fluorescent dye to view small lesions, abrasions, and foreign objects on the cornea
• Polarizing – virtually eliminates corneal reflection

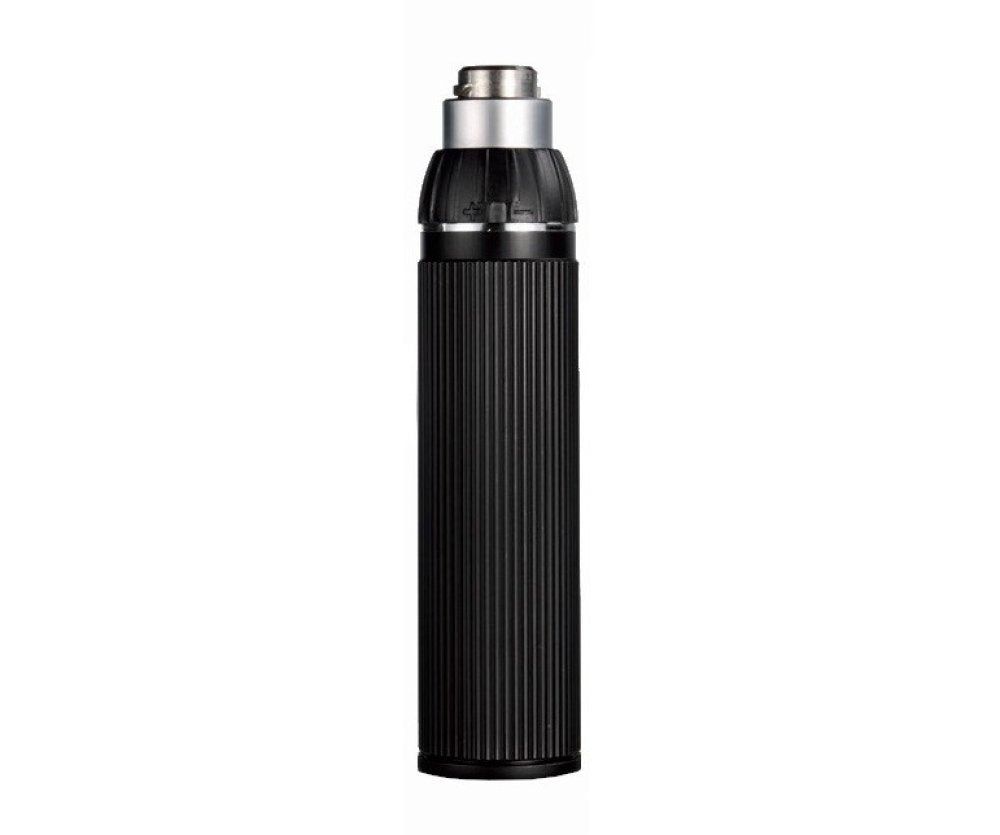

Battery Handle features:

• C sized handle with bayonet mount for easy head changes
• USB rechargeable 18650 Li-ion battery, 3.5V, 2600 mAh, 9.62Wh
• CNC machined from solid brass, the handle is chrome plated in black with a ribbed surface for a sure grip
• Adtronic electronic rheostatic light intensity control provides infinite continuous control and auto-off feature after two minutes
• 10 hours lighting time when paired with LED lamps, 3.5 hours lighting time when paired with xenon lamps
• Universal bayonet mount for compatibility with other brands of 3.5V instrument heads

Also Includes:

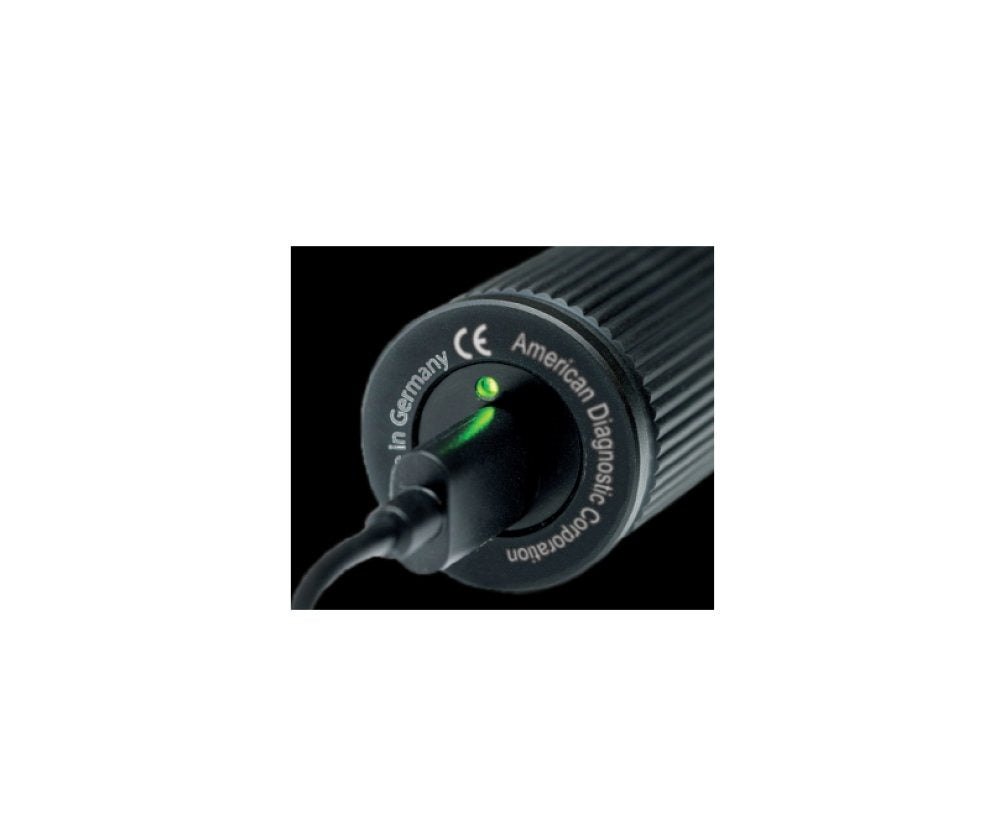

• 18-inch USB Type C charging cable

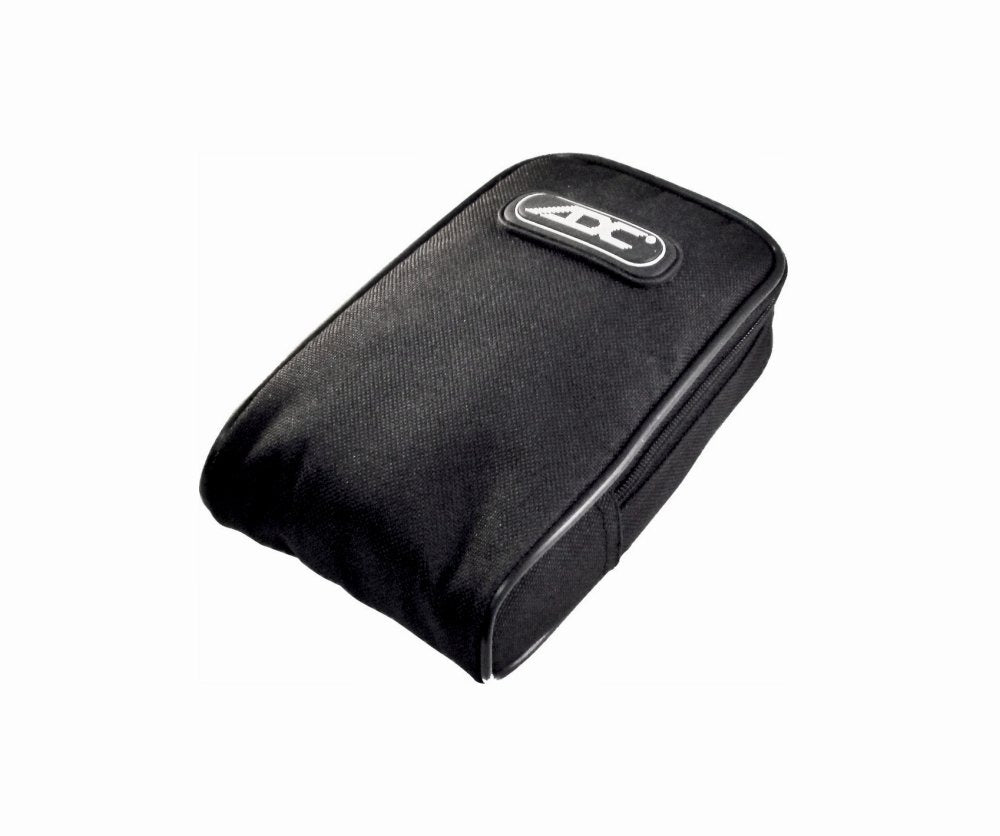

• Padded nylon case
• Five-year warranty on instrument, lifetime warranty on AdLED lamp

Features at a glance:
