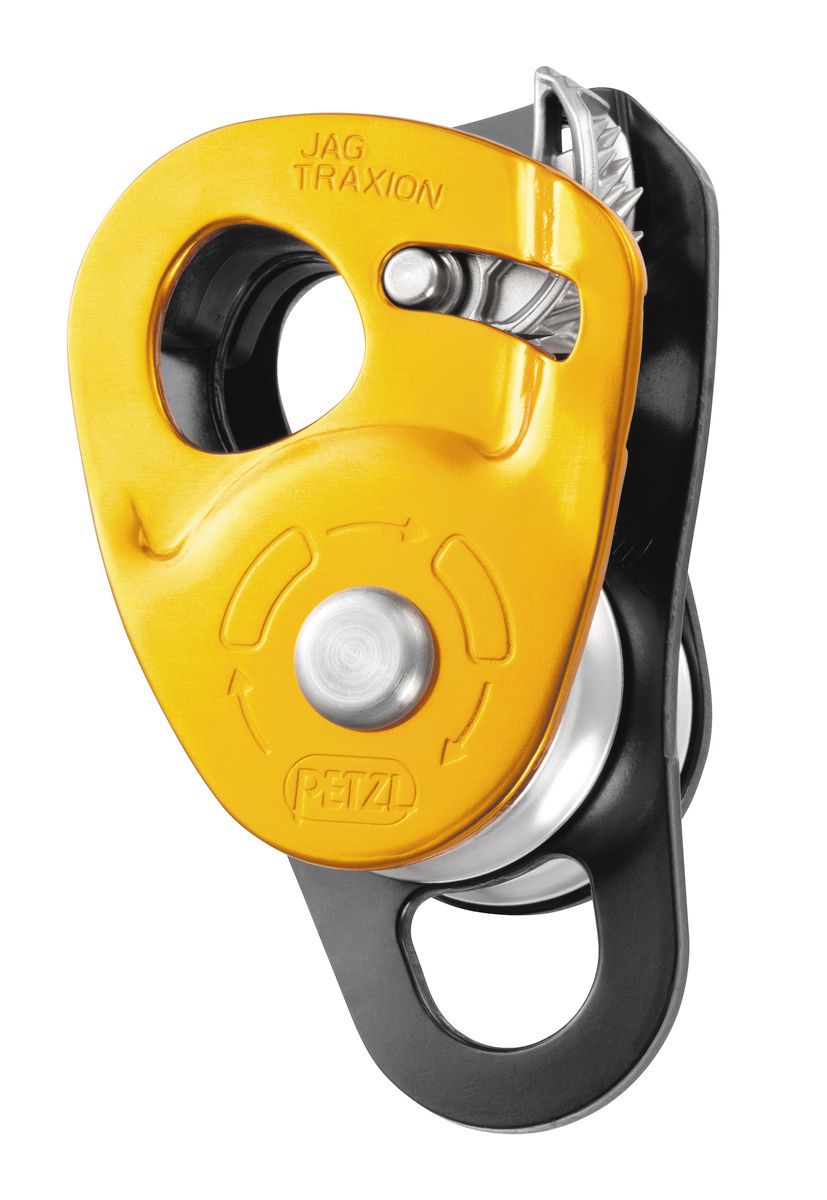

Double progress capture pulley designed for use with the JAG double pulley to make a 4:1 haul system. Sheaves mounted on sealed ball bearings for excellent efficiency.
Description
Designed for use with the JAG double pulley to make a 4:1 haul system Toothed cam with self-cleaning slot optimizes performance under any conditions (frozen or muddy ropes...) Sheave mounted on sealed ball bearings for excellent efficiency
Specifications
Weight: 145 g Certification(s): CE EN 567, NFPA 1983 Technical Use Material(s): aluminum, nylon Min. rope diameter: 8 mm Max. rope diameter: 11 mm Sheave type: sealed ball bearings Sheave diameter: 25 mm Working load: 2 × 1,5 kN × 2 = 6 kN Breaking strength: 2 × 4 kN × 2 = 16 kN Efficiency: 91 %
