A NEMA L5-15 three prong twist lock plug and the -G wire guard are included as standard equipment on all FRC Tripods.
The optional Tripod mounting bracket set includes a foot pad that the bottom of the tripod fits into and a quick release spring loaded dead bolt that holds the tripod securely.

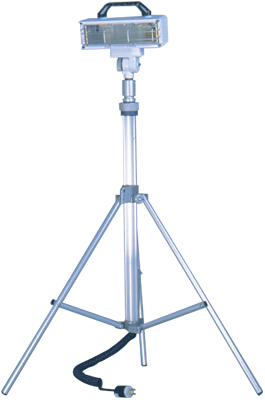

The light pole is made of anodized aluminum and has a knurled twist lock mechanism to secure the extension pole in position. The extension pole extends 16" and rotates 360 degrees. An internal brake slows the extension pole during lowering. The outer pole is a grooved aluminum extrusion. The folding legs are anodized aluminum tubing with plastic endcaps. The fully extended tripod system exceeds a height of 6' and is less than 3 1/2' when collapsed. Wiring extends from the pole bottom with a 4' retractile cord.
The bulb is accessible through the front. The lamphead directs 50 percent of the light onto the action area while providing 50 percent to illuminate the working area. The lamphead angle of elevation is adjustable at a pivot in the mounting arm and the position is locked with a round knurled locking knob. The lamphead incorporates heat-dissipating fins. Lamphead and mounting arm are powder coated white. The floodlight is UL listed as a scene light for fire service use.
FCA642-M10
- The lamphead has one (1) quartz halogen 1000 watt 120 volt bulb
- The bulb draws 8.3 amps and generates 22,000 lumens
- The lamphead is no more than 5 1/4" deep by 3 3/8" high by 15" wide
FCA642-M12
- The lamphead has one (1) quartz halogen 1000 watt 240 volt bulb
- The bulb draws 4.2 amps and generates 22,000 lumens
- The lamphead is no more than 5 1/4" deep by 3 3/8" high by 15" wide
FCA642-M15
- The lamphead has one (1) quartz halogen 1500 watt 240 volt bulb
- The bulb draws 6.25 amps and generates 35,000 lumens
- The lamphead is no more than 5 1/4" deep by 3 3/8" high by 15" wide
FCA642-S30
- The lamphead has one (1) quartz halogen 300 watt 120 volt bulb
- The bulb draws 2.5 amps and generates 5900 lumens
- The lamphead is no more than 5" deep by 3 3/8" high by 10" wide
FCA642-S50
- The lamphead has one (1) quartz halogen 500 watt 120 volt bulb
- The bulb draws 4.2 amps and generates 10,500 lumens
- The lamphead is no more than 5" deep by 3 3/8" high by 10" wide
FCA642-S72
- The lamphead has one (1) quartz halogen 750 watt 240 volt bulb
- The bulb draws 3.1 amps and generates 16,100 lumens
- The lamphead is no more than 5" deep by 3 3/8" high by 10" wide
FCA642-S75
- The lamphead has one (1) quartz halogen 750 watt 120 volt bulb
- The bulb draws 6.3 amps and generates 19,600 lumens
- The lamphead is no more than 5" deep by 3 3/8" high by 10" wide
