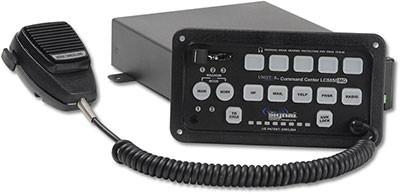

Star Command Center 200 Watt
Key Features
Gun Lock password-enable or ignition-enable
LED diagnostics: Speaker drivers active, over/under voltage, speaker shortage, and park kill active
Seven siren tone options: Wail, Yelp, Phaser, Two-Tone, Manual, Air Horn, and Rapid Air Horn
Integrated public address microphone with user adjustable volume at control head
Euro style connectors allow for quick and easy installation
Dual color backlighting on keypad (Green and Red)
Built in horn ring transfer (HRT)
Dual 100 watt outputs (200 watts total)
10 outputs, fused at 20 amps each
Flange or flush mount
Utility and Reliability Features
0mA standby current, will not drain battery
Over/under voltage and reverse polarity protection
Independently fused outputs
I/O lines are RFI protected
Large input filter capacitor eliminates RFI
Customizable user interface
Magnetically isolated radio repeat input
Self-resetting circuit protection against speaker shorts
Size:
- Control Head: 7-7/8 "H x 4-1/4"W x 1-1/8"D
Flanged
- Control Head: 6-3/4"H x 3-1/4"W x 1-1/8"D - Amplifier Box: 2-1/8"H x 7-5/8"W x 9-7/8"D
Weight: 7 lbs.
Output: 100 or 200 Watts (1 or 2 speakers)
Voltage: 10V - 16V DC
Frequency: 675-1633Hz
Amp Draw: 8 Amps (per speaker) 140 Amps Max (lighting
Approvals: Exceeds Acoustical and environmental requirements of SAE J1849*, California Title 13 Class A* (* when used with SVP drivers)
