ADC Diagnostix™ 750D Desk Aneroid Sphyg

ADC Diagnostix™ 750D Desk Aneroid Sphyg

The desktop model in our 750 clock-face aneroid series provides low-cost portability.

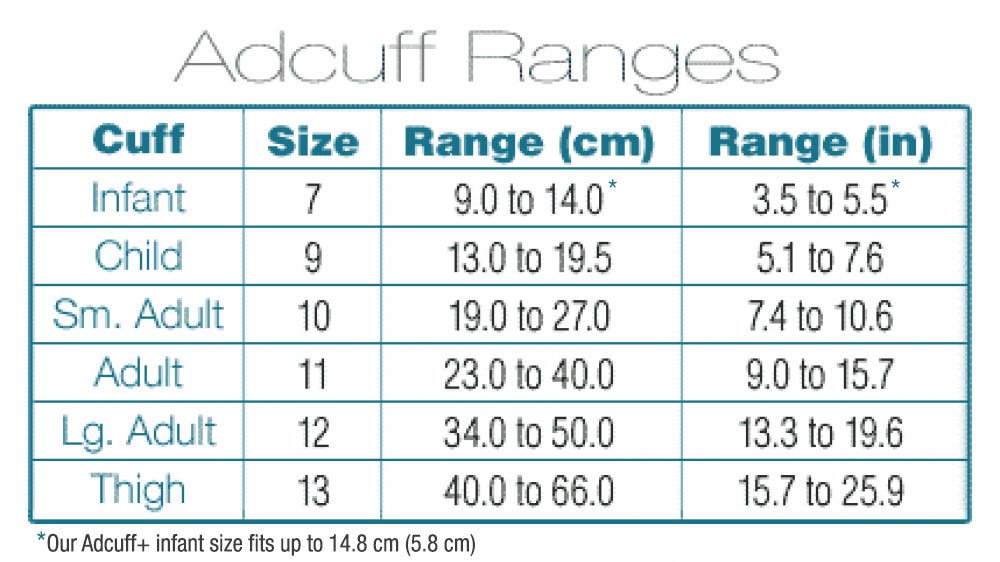

The traditional Adcuff variation features two-piece cuffs and bladders:

• Durable 210 denier nylon construction
• Integral flap that secures bladder and prevents bulging
• ADC’s proprietary Size Guide marking system prevents mis-cuffing
• Longer limb ranges for improved patient coverage
• Gauge hang tab (on most sizes), bladder flap, and “property of” tag
• Hook-and-loop adhesive rated to a minimum of 30,000 open/close cycles
• Three-year warranty on cuffs

Gauge features:

• Clock-style gauge with a large, easy-to-read, 6” luminescent dial for high visibility in virtually any light condition
• Precision-crafted, 300mmHg Japanese engineered manometer with no-pin stop movement, withstands the heaviest use
• Winter white wraparound bezel for a finished look

Desk stand features:

• Fully assembled tabletop stand with compact, integrated basket for storage and integrated swivel mount for 110° viewing rotation
• Integrated cushioned carry handle

Other features:

• Adcuff inflation system includes nylon cuff, Adflow bulb and valve, and eight-foot length (when extended) coiled tubing
• Adflow filter screen check and deflation valve for reduced dust build-up
• Adflow chrome-plated brass air release valve with micro-threads for precise deflation control
• Lifetime calibration warranty

Made without phthalates or natural rubber latex. Assembled, inspected, and packaged in the U.S.A from foreign components. Meets or exceeds ANSI/AAMI/ISO 81060-1.
