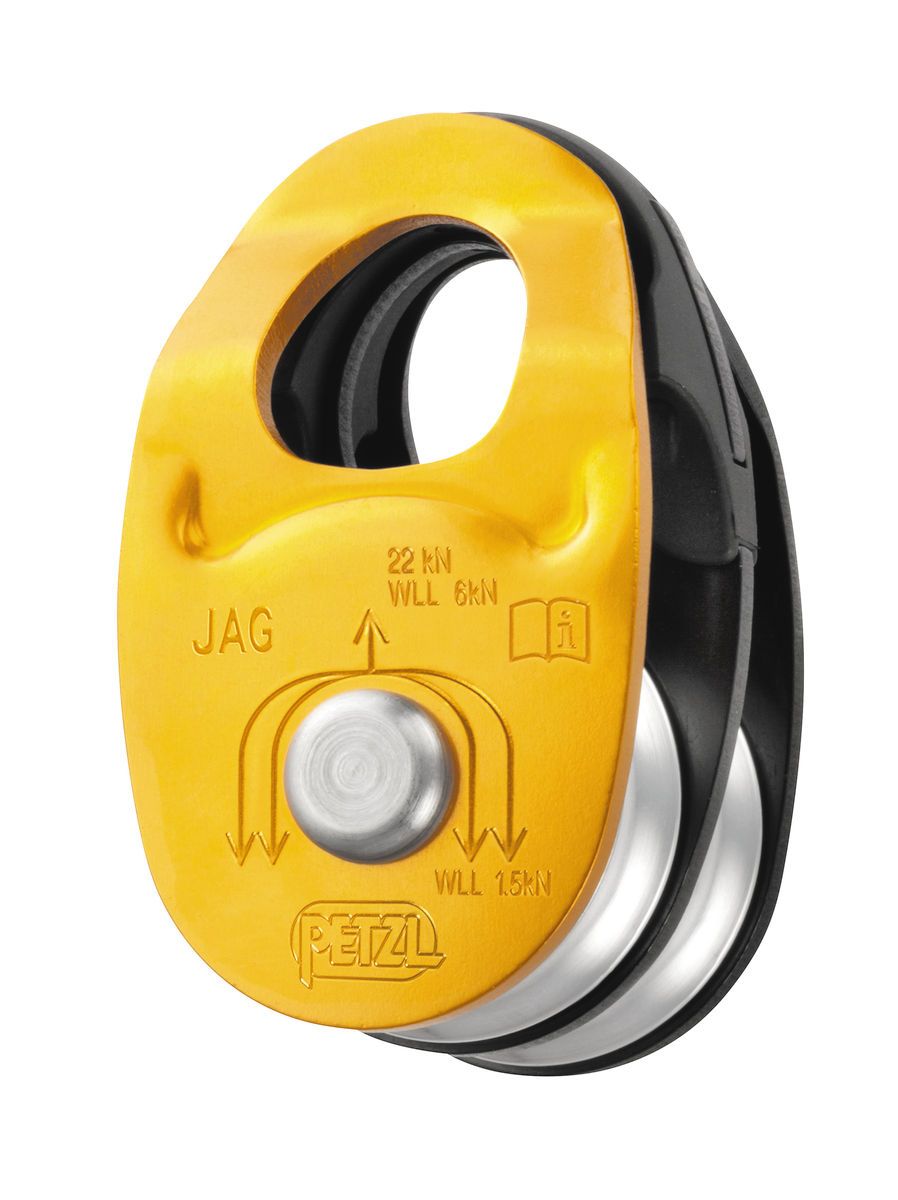

Designed for use with the JAG TRAXION double progress capture pulley to make a 4:1 haul system
Sheaves mounted on sealed ball bearings for excellent efficiency
Specifications
Weight: 120 Gram
Certification(s): CE EN 12278, NFPA 1983 Technical Use
Material(s): aluminum, nylon
Min. rope diameter: 8 Millimetre
Max. rope diameter: 11 Millimetre
Sheave type: sealed ball bearings
Sheave diameter: 25 Millimetre
Working load: 2 × 1,5 kN × 2 = 6 KiloNewton
Breaking strength: 2 × 4 kN × 2 = 16 KiloNewton
Efficiency: 91 Percent
Sheaves mounted on sealed ball bearings for excellent efficiency
Specifications
Weight: 120 Gram
Certification(s): CE EN 12278, NFPA 1983 Technical Use
Material(s): aluminum, nylon
Min. rope diameter: 8 Millimetre
Max. rope diameter: 11 Millimetre
Sheave type: sealed ball bearings
Sheave diameter: 25 Millimetre
Working load: 2 × 1,5 kN × 2 = 6 KiloNewton
Breaking strength: 2 × 4 kN × 2 = 16 KiloNewton
Efficiency: 91 Percent
