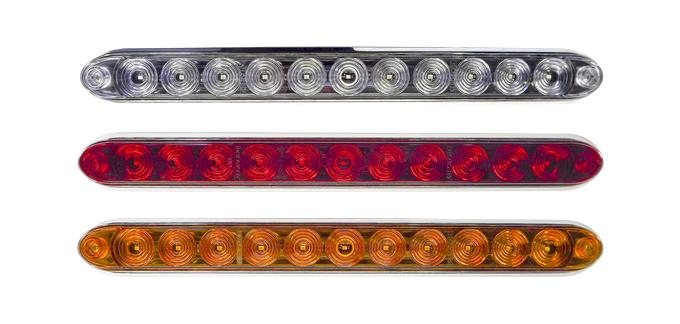

Stop/Turn/Tail with ultra-low profile and narrow width
Can be mounted horizontal, vertical or at an angle
Slim design for use where space is a premium
Reliable performance over 100,000 hours
Waterproof, sealed body that is immune to shock and vibration
Meets all FMVSS 108 requirements for wide and narrow vehicles
Made in the USA with a Lifetime Warranty
Stop/Turn/Tail lamp for use on Heavy duty trucks, Semi-trailers, Cargo and Utility trailers, Boat trailers, Work vehicles and any wide or narrow motor vehicle requiring quality DOT rated lighting
Dimensions: 15" x 1.25" x 0.5"
Voltage: 9 - 14V DC
Current: 0.19A (red or amber)
LEDs: 11
Wire: 9 Pigtail
Mounting: Surface mount using (2) #8 screws (screw covers included)
LOW PROFILE STOP TURN TAIL LAMPS
T10-RR00-1 Red Low Profile STT Red Lens
T10-RC00-1 Red Low Profile STT Clear Lens
T10-AA00-1 Amber Low Profile Turn Sidemarker Amber Lens
T10-AC00-1 Amber Low Profile Turn Sidemarker Clear Lens
AUXILIARY LIGHTS
T10-LC00-1 Low Profile Auxiliary Light
Can be mounted horizontal, vertical or at an angle
Slim design for use where space is a premium
Reliable performance over 100,000 hours
Waterproof, sealed body that is immune to shock and vibration
Meets all FMVSS 108 requirements for wide and narrow vehicles
Made in the USA with a Lifetime Warranty
Stop/Turn/Tail lamp for use on Heavy duty trucks, Semi-trailers, Cargo and Utility trailers, Boat trailers, Work vehicles and any wide or narrow motor vehicle requiring quality DOT rated lighting
Dimensions: 15" x 1.25" x 0.5"
Voltage: 9 - 14V DC
Current: 0.19A (red or amber)
LEDs: 11
Wire: 9 Pigtail
Mounting: Surface mount using (2) #8 screws (screw covers included)
LOW PROFILE STOP TURN TAIL LAMPS
T10-RR00-1 Red Low Profile STT Red Lens
T10-RC00-1 Red Low Profile STT Clear Lens
T10-AA00-1 Amber Low Profile Turn Sidemarker Amber Lens
T10-AC00-1 Amber Low Profile Turn Sidemarker Clear Lens
AUXILIARY LIGHTS
T10-LC00-1 Low Profile Auxiliary Light
